ARGEN graph reference
Data & methods.
Source conditions, trace labels and accessible values for the graph animations.
Illustrative simulation
Four fast, two medium, two stable.
Illustrative 24-hour study | eight parallel samples | Mw(t)/M0

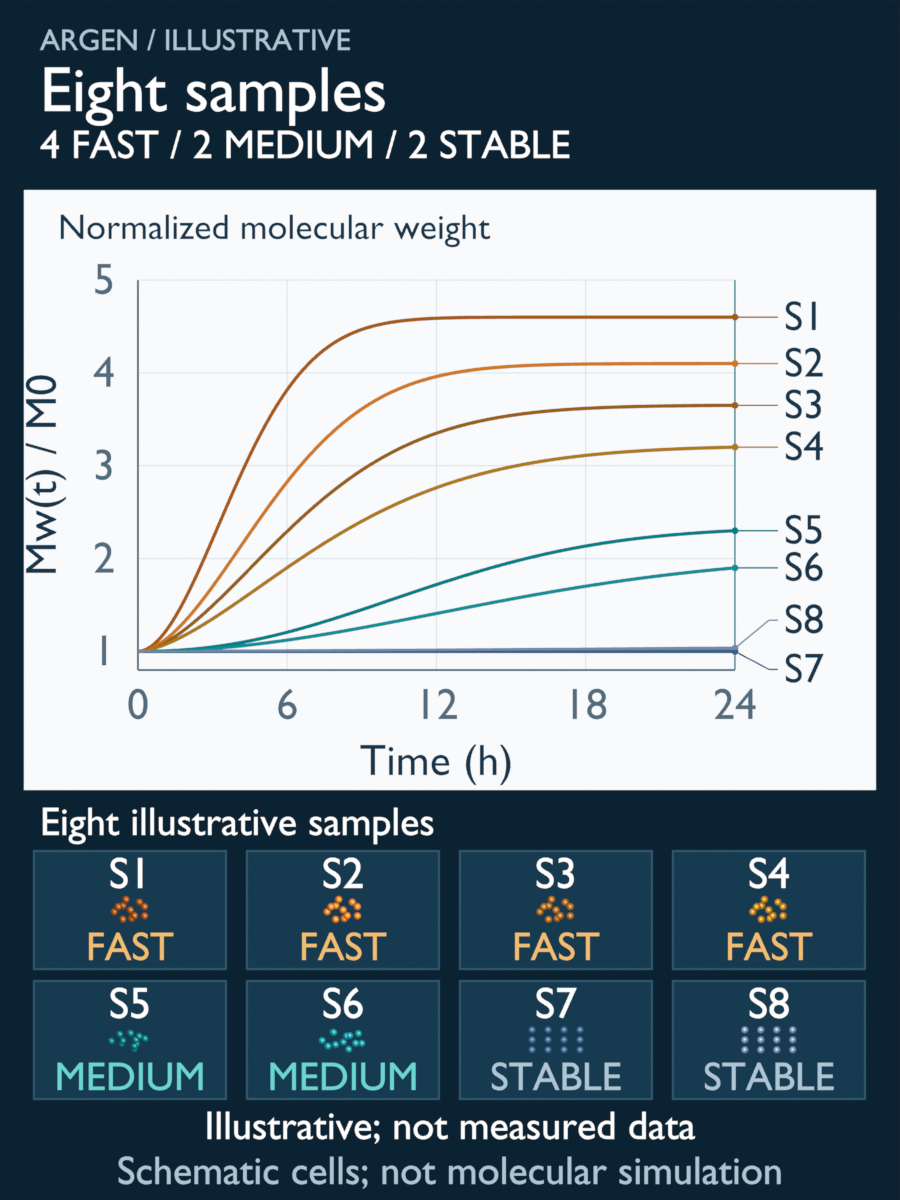

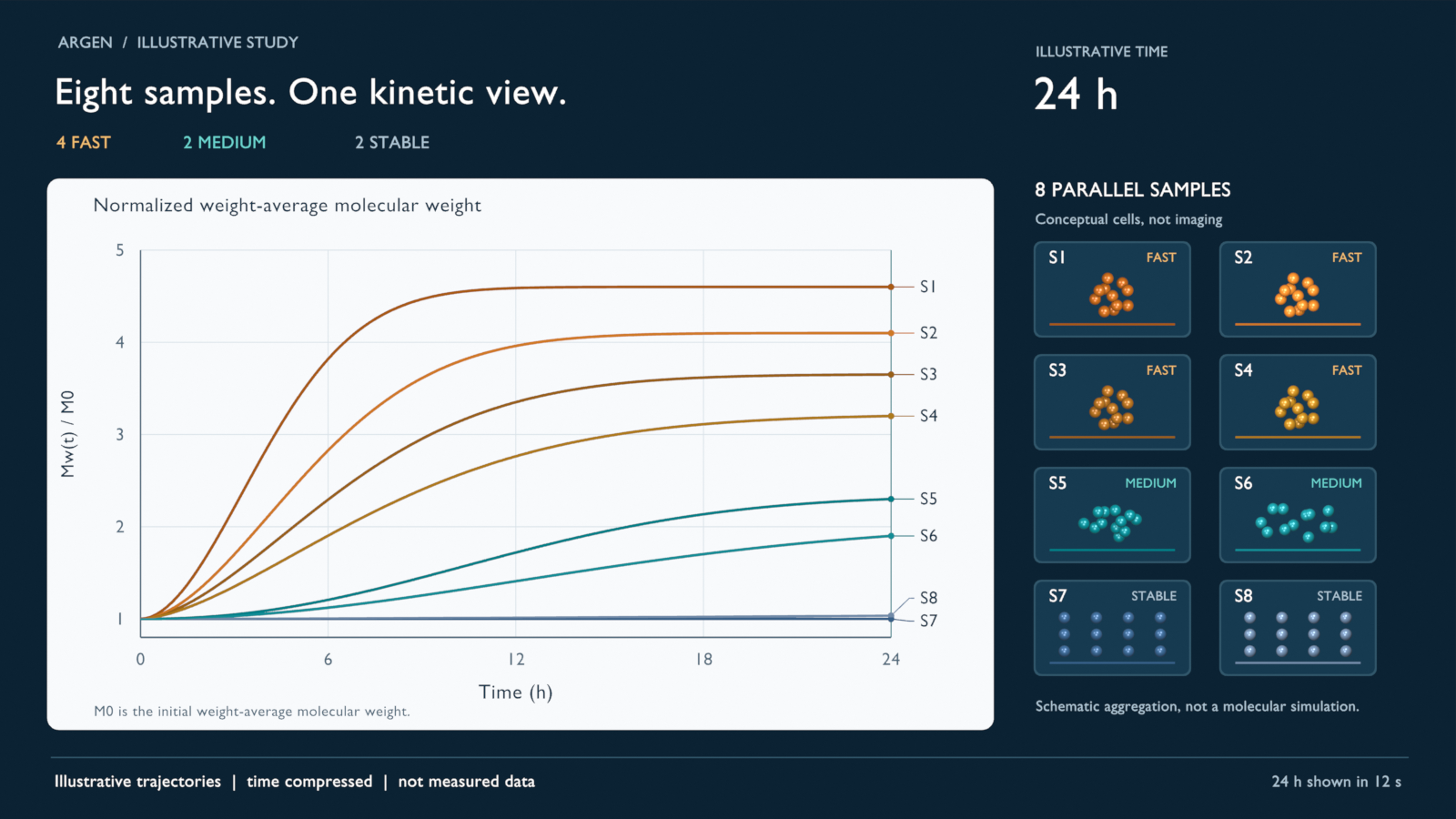

Illustrative simulation. Not measured data. Eight synthetic trajectories show four fast-aggregating, two medium and two stable samples. Time runs from 0 to 24 hours; the y-axis is normalized weight-average molecular weight, Mw(t)/M0, where M0 is the initial value. Playback shows the study in 12 seconds, followed by a two-second hold. The sample cells show schematic aggregation, not molecular simulation or imaging.
Download illustrative values: CSV · JSON and provenance
Source chart reconstruction
Concentration under stirring stress
BSA | 25 °C | 500 rpm | 12 h

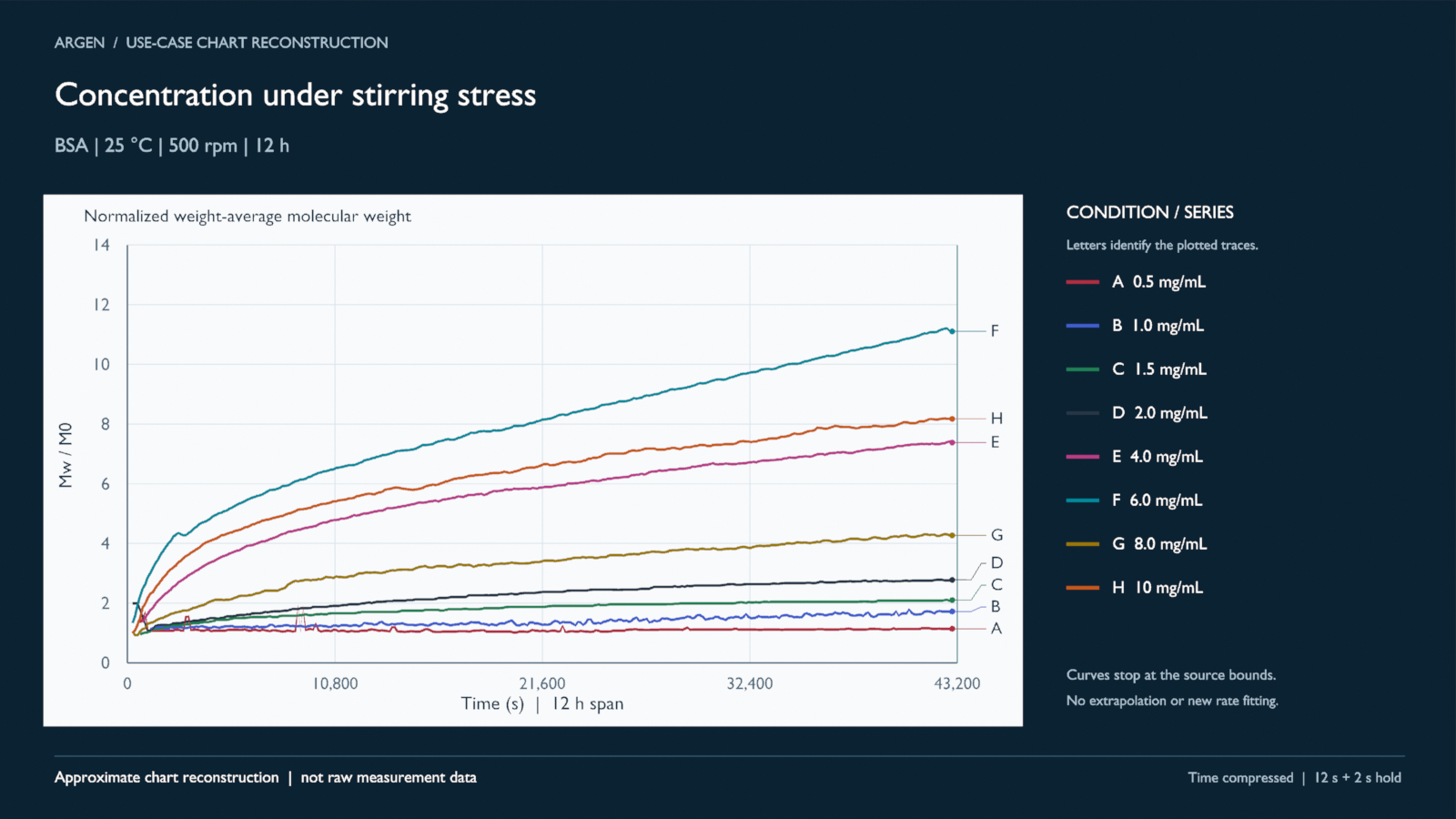

Approximate reconstruction from the supplied chart. Not raw measurement data. Linear time axis in seconds, from 0 to 43,200 (12 hours). Eight source-labeled concentrations are shown under the reported stirring conditions. The y-axis shows normalized weight-average molecular weight, Mw(t)/M0, where M0 is the initial weight-average molecular weight. Playback compresses time into 12 seconds, followed by a two-second hold. Curves stop at the source bounds.
Download reconstructed CSV · JSON with provenance
Source chart reconstruction
Temperature-dependent aggregation
mAb | 1 mg/mL | source range 50-80 °C | 8 selected traces

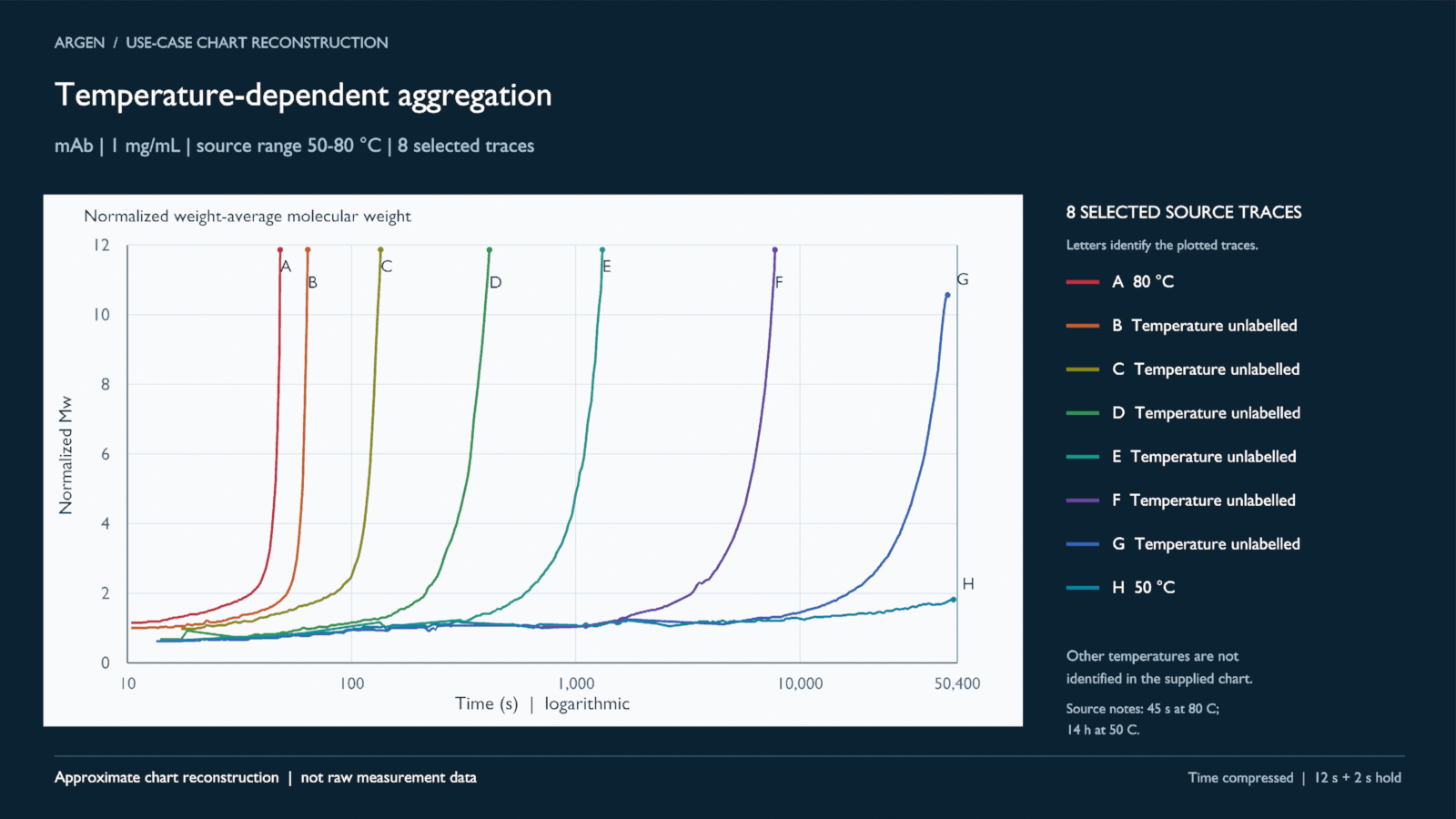

Eight selected source traces reconstructed from the supplied chart. Not raw measurement data. Logarithmic time axis in seconds, from 10 to 50,400. Eight selected source traces are shown: the labeled 80 °C and 50 °C conditions plus six intermediate curves whose temperatures are not identified in the source. This is a selected view of the source chart, not a new eight-cell experiment. The y-axis shows normalized weight-average molecular weight, Mw(t)/M0, where M0 is the initial weight-average molecular weight. Playback compresses time into 12 seconds, followed by a two-second hold. Curves stop at the source bounds.
Download reconstructed CSV · JSON with provenance
Source chart reconstruction
pH-dependent molecular-weight change
BSA | 55 °C | logarithmic time in hours

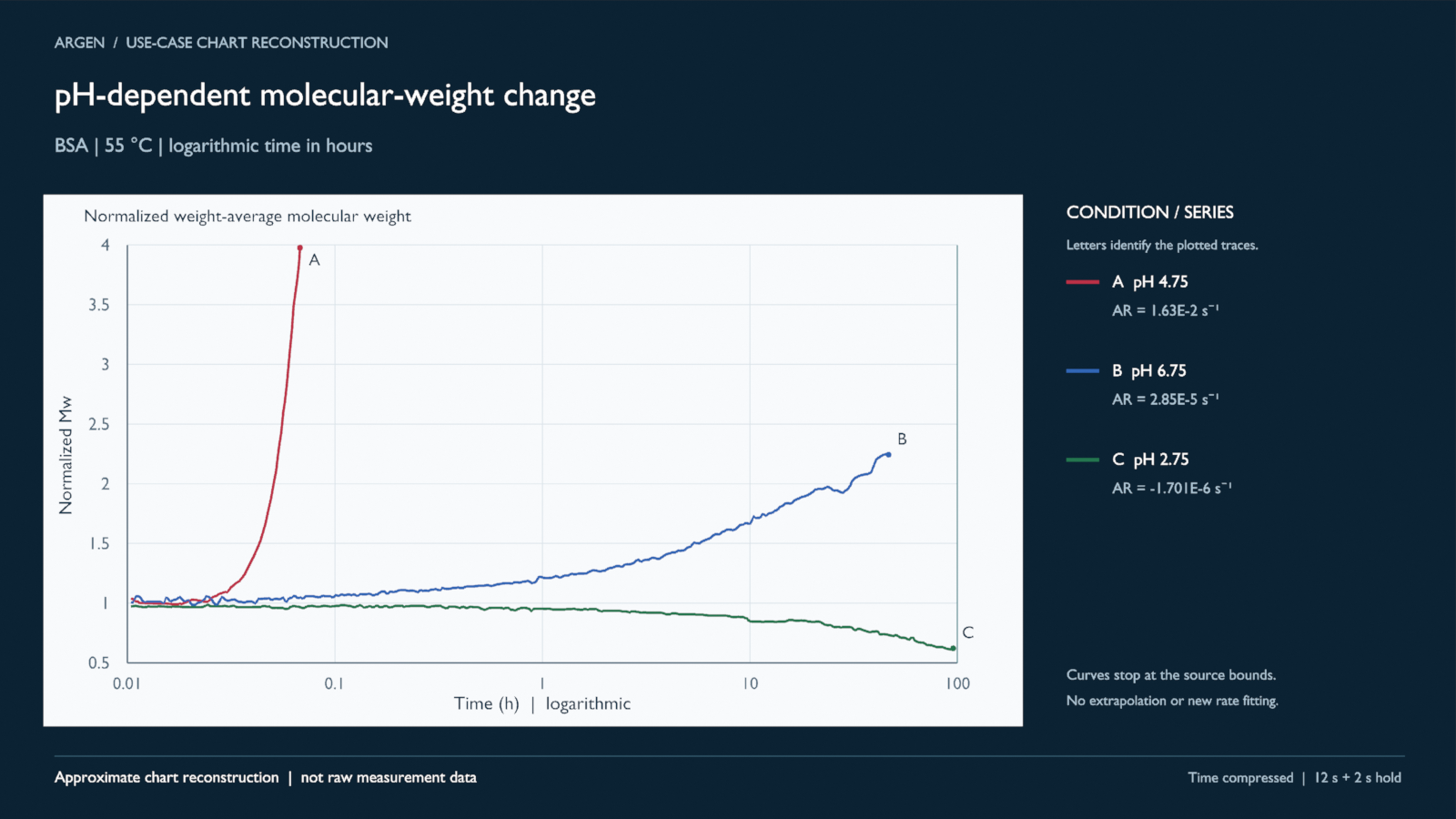

Approximate reconstruction from the supplied chart. Not raw measurement data. Logarithmic time axis in hours, from 0.01 to 100. The three source-labeled pH conditions and source-reported rate annotations are retained; no new rate model has been fitted. The y-axis shows normalized weight-average molecular weight, Mw(t)/M0, where M0 is the initial weight-average molecular weight. Playback compresses time into 12 seconds, followed by a two-second hold. Curves stop at the source bounds.
